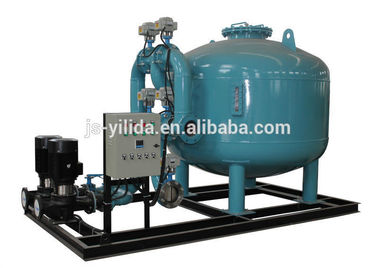

High Filtration Speed Industrial Gravity Rapid Sand Filter Water Treatment Device

High Filtration Speed Industrial Gravity Rapid Sand Filter Water Treatment Device
High Filtration Speed Industrial Gravity Rapid Sand Filter Water Treatment Device

Duży Obraz :  High Filtration Speed Industrial Gravity Rapid Sand Filter Water Treatment Device

Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: YLD
Orzecznictwo: SGS
Model Number: YLD-1800
Zapłata:
Minimum Order Quantity: 1 set
Cena: negotiation
Packaging Details: with the Shockproof membrane for outer packing
Delivery Time: 15 working days after received your payment
Payment Terms: T/T or L/C or western Union
Supply Ability: 50 units per month
Szczegółowy opis produktu
Product Name: Quartz sand filter Flow rate: 75-125 T/Hr
Inlet and outlet diameter: DN125 Tank size: 1800*1900
Quartz sand weight: 2 T Power supply: 380V/220V/110V 50Hz/60Hz
Control mode: Automatic Working pressure: 0.6Mpa/1Mpa
High Light:

Walnut Shell Filter

,

swimming pool sand filters

High Filtration Speed Industrial Gravity Rapid Sand Filter Water Treatment Device





A rapid sand filter is a water treatment device that uses sand or other grainy media to filterout the

solid particles suspended in water. These suspended solids include dirt and other organic matter

that cause water to appear cloudy or turbid. Rapid sand filtration is commonly used by municipal

water treatment plants to clean surface and ground water intended for drinking water. It is also

used to treat sewage and industrial wastewater containing biological contaminants before these

waters are discharged to the environment.

Rapid sand filtration takes place in a tank containing one or more layers of grainy media, such as

 sand, anthracite or hard coal, garnet, magnetite, or other minerals. The total media depth typically

ranges from 2-6 feet (about 0.6-1.8 meters). In many systems the incoming water, or influent, enters near

the top of the tank and

 flows downward through the media. The outgoing water, or effluent, leaves through a drainage

system called the underdrain that lies underneath the filter media bed.

As the influent travels through the rapid sand filter, many of the water-borne suspended solids become

trapped above or within the pores between grains. This straining

 process is the primary mechanism by which solids are removed from the water. In addition,

suspended solids are adsorbed onto the surface of the grains due to intermolecular attractive

 forces. Other physical, chemical, and biological processes also enhance solids removal during

 filtration.



The effectiveness of a rapid sand filter is highly dependent on the characteristics of the influent and

the grainy media. Important influent properties include the concentrations, types, and particle charges

 of the suspended solids in the water. The depth of the media bed and the particle charges, sizes, and

shapes of the grains are also crucial.

Smooth round grains crowd closely together and create very small pores. More jagged grains may

produce larger pores, but are better at snagging solids as they pass by. Typically, layers of different

grains are used to take advantage of multiple removal mechanisms.

Over time, the media bed of a rapid sand filter becomes clogged with accumulated solids. At this point,

 the filter is cleaned through a process called backwashing. Wash water is pumped upward through the

 bed to dislodge the solids and rinse them out of the tank. As the wash water is drained, the granular

media settle back into their original layers, and the filter is ready to be used again.


Generally speaking, if your filter is a quartz sand filter, it usually has two main functions:
1. To reduce suspended solids (turbidity). Otherwise, as the system is running, suspended solids

increases, which will exacerbate the deposition and other problems.
2. Degreasing. Especially the oily turbid circulation, such as steel rolling and continuous casting,

has high oil content and is easy for breeding microorganism and blocking the nozzles.

Technical description of by-pass filter for the industrial circulating water
Flow filter flow is designed according to 5% to 10% of the total circulation volume (the by-pass filter

flow of the cooling water is designed by 10 % of the circulation volume and the by-pass filter flow of

chilled water is designed by 5% of the circulation volume) and the filtration rate is designed by 20 —

3Smih according to water quality of the system. Specific to corrosive suspended solids of the

circulating water system as well as the control, our technical support team has designed a variety of manual/automatic by-pass filtrating equipment in line with customer demand.





Back-washing status


With the continuous accumulation of impurities in the filter layer, head loss will continue to increase.

The factory setting with backwash once in24 hours , when it reaches the setting time, automatic back

-washing will be started to clean accumulated impurities.
The working principle is back-washing recoil and surface cleaning.




Characteristics


• complete adjustment on manual/automatic control testing before delivery.
• fine selected filtering material, high filtering efficiency.
• carbon steel with epoxy painting for internal and outer material.
• Distributor: simple, stable and reliable.
• Fine finishing water collector with high strength and working lifespan of over 10 years.
• Reliable performance: complete testing will be actuated before deliver out of the factory

• Convenient installation: just connect the water inlet and outlet pipe and drain pipe to start the

working, no need for assemble on site.
• Little water consumption for back-washing: it adopts homogeneous filtering material and prolong

the back-washing cycle, the total water consumption has been reduced.
• High efficient back-washing: advanced water collector will ensure stable and efficient backwash

effect.

FAQ:

01.  how small a solid needs to be removed,
02.  how dirty the water is,
03.  how the water will be used once it is filtered,
04.  and the source of backwash water needed to clean the filters.



Specifications:


Technical parameters sheet for Shallow Sand Filter(bypass sand filter)



model

Filter diameter

Height

inlet-outlet

filtration area

capacity

mm

mm

mm

m³/hour

YL-SF-500

500

816

40

0.2

6~10

YL-SF-600

600

874

40

0.28

8~14

YL-SF-700

700

900

40

0.38

12~19

YL-SF-800

800

960

DN50

0.50

15-25

YL-SF-1000

1000

1200

DN50

0.79

23-39

YL-SF-1200

1200

1400

DN80

1.13

33-55

YL-SF-1400

1400

1600

DN100

1.54

45-75

YL-SF-1600

1600

1800

DN100

2.01

60-100

YL-SF-1800

1800

1950

DN150

2.54

75-125

YL-SF-2000

2000

2150

DN150

3.14

95-155

YL-SF-2200

2200

2250

DN150

3.80

115-190

YL-SF-2400

2400

2100

DN150

4.52

130-210

YL-SF-2600

2600

2400

DN150

5.30

145-225

YL-SF-2800

2800

2500

DN200

6.15

155-240

YL-SF-3000

3000

2600

DN200

7.00

170-255

YL-SF-3200

3200

2800

DN250

8.15

270-320
